Create a Slide Show Using the AJAX SlideShow and TreeView Controls

By Dina Fleet Berry


Most web-based slide show applications depend on a database for some or all of the storage.
This application allows you to show pictures from a directory structure without any underlying
database. The application uses an ASP.NET 2.0 TreeView control for file system navigation and
the AJAX 1.0 SlideShow Extender (control) to display the images found in the directory.

Required Software

In order to create this application, you need to install Microsoft Visual Studio. I used Visual
Studio 2005 Professional. You also need to download the ASP.NET AJAX Extensions and the AJAX
Control ToolKit found at
These are two different installs so make sure to get both. The version of AJAX you download must
be compatible with your version of Visual Studio and .NET Framework. Since I’m using Microsoft
Visual Studio 2005 and ASP.NET 2.0, I chose ASP.NET 2.0 AJAX Extensions 1.0.
There is only one download for the Control Toolkit. If you are developing from an
IIS website, as opposed to a Visual Studio project, make sure the web site is in
the correct ASP.NET version. For my application, I choose 2.0.

You may need to build the AJAX extensions or the AJAX Control ToolKit. You will need to remember
the location of the build Control Toolkit’s binary: AjaxControlToolkit.dll. You will add this
library as a reference to your web project.

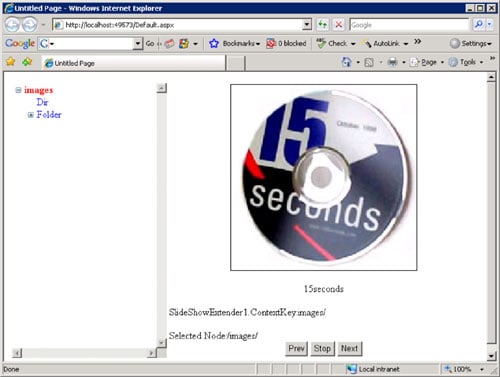

A Quick Look at the Application

The purpose of the application is, given a directory location, load and display any pictures in
that directory via the SlideShow. The application is a single visual web page divided into two
sections. The left side of the page is the navigation provided by the ASP.NET 2.0 TreeView
control tied to the file system. The right side of the page is the Ajax SlideShow found in
the Ajax Control Toolkit with some description labels and control buttons below the image.

The application is based on four main files: Default.aspx, Default.aspx.cs, SlideService.asmx,
and Web.Config. Default.aspx contains the graphical elements and
their default values. Default.aspx.cs is the bulk of the work to
control the navigation via the TreeControl, the ClickThrough, the ViewState and QueryString.
SlideShow.asmx is the web service that the SlideShow Control relies on.

Web.Config holds all locations and names for the application.

Explanation of TreeView Structure Versus Web and File System

The TreeView control displays and provides navigation for a hierarchical structure of data.
This can be any hierarchy. Since the TreeView control is remarkable similar to the TreeView
show in the file system application of the operating system, it is an obvious choice for
navigation of any file system.

The TreeView control in this article’s application has several properties in each node to
identify the node. The three most useful are the Text, ValuePath, and the Value. The Text
is what displays in the tree, the directory name. For example, "Product Images".
The Value is the web location of the location, for example, "/Images/Product/".
The ValuePath is the location of the node as required by the TreeView control, for example

"/Images/|/Images/Product/". The pipe character "|" is the PathSeparator.
It is important to set the PathSeparator instead of taking the default which is
"/". You can see where the ValuePath of "/Images///Images/Product/"
would be easily confusing. When you use the ValuePath to find the node again, the
TreeView control will not find the node using the default PathSeparator. In order to
find the directory and it’s child directories contained in the directory,
the application uses Server.MapPath to change from the web location of
"/Images/Product/" to "c:\project\Images\Product".
This may seem simple but you need to be able to distinguish between these
different address types while debugging.

The SlideShow control, for this application, shows images in the location contained in
the ContextKey and is the same value as the TreeView’s Value property. If the location
of the SlideShow images did not change, it would not be necessary to use the ContextKey.

Control Location Example
TreeView.SelectedNode.Text Product
TreeView.SelectedNode.Value /Image/Product/
TreeView.SelectedNode.ValuePath /Image/|/Image/Product/
SlideShow.ContextKey /Image/Product/

Introduction to SlideShow Web Service

The SlideShow extender on the Default.aspx page relies on SlideService.asmx which returns an
array of slides. This array contains the location, title, and description of the images to
show in the slide show. The following XML is a returned Slide array:

<?xml version="1.0" encoding="utf-8"?>
<ArrayOfSlide xmlns_xsi="" xmlns_xsd="" xmlns="">

        <Name> images_15seconds</Name>
        <Description />

        <ImagePath>/images/ images_Blue hills.jpg</ImagePath>
        <Name> images_Blue hills</Name>
        <Description />
        <ImagePath>/images/ images_Sunset.jpg</ImagePath>

        <Name> images_Sunset</Name>
        <Description />
        <ImagePath>/images/ images_Water lilies.jpg</ImagePath>
        <Name> images_Water lilies</Name>

        <Description />
        <ImagePath>/images/ images_Winter.jpg</ImagePath>
        <Name> images_Winter</Name>
        <Description />


The <ImagePath> must be a valid value or the SlideShow will not display.
The other tags of Name and Description can be empty.

You will notice that all images supplied with the sample application have the
directory name prefixed to the file name such as "images_Bull Hills.jpg"
above. This is done on purpose for easy debugging. The images displayed should be
prefixed by the TreeView.Value found in the selected node.

Complexities of the Slide Service

The only job your service needs to perform is, given a valid web directory, return a
valid Slide array or NULL. In order to have a robust service, the service needs to:

  1. check that the web directory exists with Directory.Exists
  2. check that the image extensions are valid for this application by comparing the extension again a list in web.config
  3. return a valid image listed in web.config if no images are found in the directory

Create Web Application

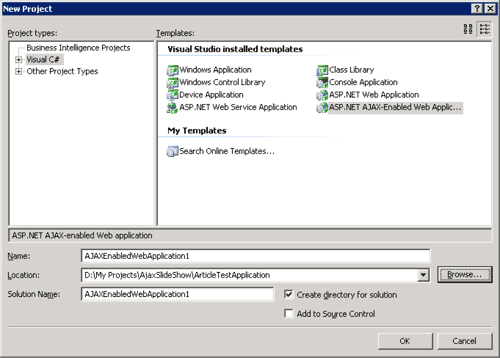

In Visual Studio, create a new AJAX enabled web application.

Add the AjaxControlToolkit.dll to the project as a reference.

Create SlideService.asmx

Add a web service file named SlideService.asmx. Change the supplied "Hello World" function to the following:

    public AjaxControlToolkit.Slide[] GetSlides(String contextKey)
        return null;

The function name is GetSlides. The parameter is contextKey of type String. You can use contextKey in
anyway you want, it is meant to pass information from the calling AJAX control to the web service.
In this application, the parameter will be used to supply the directory for the slide show to be fed
from. The return parameter is an array of Slides. The AJAX SlideShow control looks for this signature
and the signature is case sensitive and exact. Don’t try to change any of this syntax or your service
not be called.

Add the following keys to Web.Config:

    <add key="SlideServiceNoImagesFoundLocation" value="NoImagesFound.jpg"/>
    <add key="SlideServiceValidImageExtensions" value="jpg,gif,bmp,ico"/>

The first key provides a web location for an image to display in the slide show when no images
are found in the directory specified in the contextKey parameter. In this case, the location
is the root of the web site. The second parameter is a list of valid extensions in the directory
to return in the slide array.

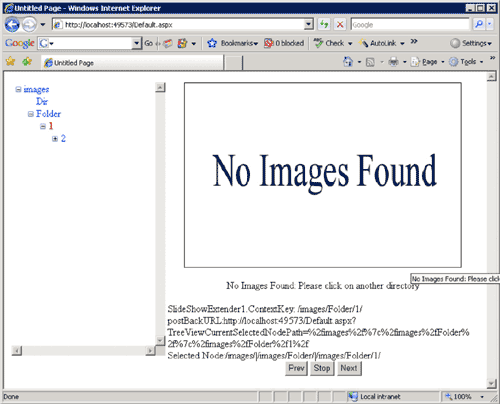

In the above example, I have provided an image titled "NoImagesFound.jpg" which you
will find in this articles’ download package. The image is displayed as used in the application below:

The function for NoImagesFound is below and is called from GetSlides():

    private AjaxControlToolkit.Slide[] GetNoImagesFoundDirectory()

        AjaxControlToolkit.Slide[] slides = new AjaxControlToolkit.Slide[1];

        // get image from web.config and verify it exists on file system
        _noImagesFoundWebLocation = System.Configuration.ConfigurationSettings.AppSettings.Get("SlideServiceNoImagesFoundLocation");
        if (!File.Exists(Server.MapPath(_noImagesFoundWebLocation)))
            throw new Exception("SlideService.asmx::GetNoImagesFoundDirectory - NoImagesFoundLocation found in web.config does not exist after server.mappath - " + Server.MapPath(_noImagesFoundWebLocation));

        // create slide from image
        slides[0] = new AjaxControlToolkit.Slide(_noImagesFoundWebLocation, "No Images Found: Please click on another directory", "");

        // return slide
        return (slides);

This GetNoImagesFoundDirectory function creates a Slide array of one element. It grabs the
image file location from Web.Config then verifies that the file does exist. It then adds the
image into the Slide array with the title to indicate that the user should click on another

Two functions that are called from GetSlides() that are not provided in this article but are
provided in the articles’ download are IsImage() and GetImageExtensionsFromWebConfig().

The function for GetSlides() is below:

    public AjaxControlToolkit.Slide[] GetSlides(String contextKey)
        // get valid extensions

        // contextKey not empty
        if (String.IsNullOrEmpty(contextKey))
            return null;

        // contextKey in scope
        if ((contextKey.IndexOf("..")>=0))
            return null;

        // verify contextKey directory exists
        String mapPath = Server.MapPath(contextKey);
        if (!Directory.Exists(mapPath))
            throw new Exception("SlideService.asmx::GetSlides - mapPath does not exist - " + Server.MapPath(mapPath));

        // get files in contextKey directory
        string[] fileNames = System.IO.Directory.GetFiles(mapPath);

        if (fileNames.Length == 0)
            return GetNoImagesFoundDirectory();

        // create generic empty list of slides
        List<AjaxControlToolkit.Slide> list = new List<AjaxControlToolkit.Slide>();
        String justFileName;
        String displayedFileTitleOnSlider;

        String displayedFileDescriptionOnSlider;

        for (int i = 0; i < fileNames.Length; i++)
                // get complete filename
                justFileName = Path.GetFileName(fileNames[i]);

                // get title
                displayedFileTitleOnSlider = Path.GetFileNameWithoutExtension(fileNames[i]);

                // set description to empty
                displayedFileDescriptionOnSlider = String.Empty;

                // add file to list of slides
                list.Add(new AjaxControlToolkit.Slide(contextKey + justFileName, displayedFileTitleOnSlider, displayedFileDescriptionOnSlider));

        return (list.ToArray());

This GetSlides() function gets the valid file extensions from Web.Config and validates
that contextKey is not empty and is not trying to go outside of the scope of this application
for security. Then the application changes the contextKey from its web location to the
physical location on disk via Server.MapPath and ensures its existence. Next the function
grabs all files in the directory into a string array. If there are no filenames in the
string array, the function returns the NoImagesFound image via the GetNoImagesFoundDirectory()
function. Then the function creates an empty list of slides via generics.
Then the files names are looped, looking for valid extensions.
Each file name with a valid extension is added to the slide array.
The file name minus the extension is the slide show image title.
The slide show image description is empty.

Add the following class variables:

    String _noImagesFoundWebLocation; //path and file of the image containing "No Images Found" text

    String _arrayOfImageExtensions; //string of valid image file extensions without "." in the value ex "jpg,gif"
    String[] _extensionList; //string array of valid image file extensions without "." and with comma removed

Add the following references:

    using System.Web.UI.WebControls;

    using System.Diagnostics;
    using System.IO;
    using System.Configuration;
    using System.Collections.Generic;

Add this to the declarations above the GetSlides function:


When you are done, test the service in the browser by calling the web service page directly: SlideService.asmx.

Ensure that the results are in the following format:

        <ImagePath>/images/Blue hills.jpg</ImagePath>
        <Name>Blue hills</Name>

        <Description />

A Word of Caution

Do not move on to the web page until you are sure the slide service is returning the right data
in the right format. When you build and test your web page, it will be nice to know that the
slide service is not part of any bugs that pop up. The AJAX Slide Service control will not
inform you when you are using it wrong or passing it malformed data from the slide service.
It just won’t work.

Introduction to TreeView

The TreeView control is a standard navigation control provided in System.Web.UI.WebControls
namespace. The default start location of the TreeView control is stored in the
TreeViewDefaultStartLocation key in the Web.Config. This location is the root
of the control. All other nodes are added by crawling through the child directories in code.

We need to add code to:

  1. given a selected node, pass the node’s ValuePath as the contextKey to the web service
  2. given a location off the node passed in by query string, find the selected node and pass it’s ValuePath as the contextKey to the web service

The TreeView control has a concept of a selected node. Each node with children will have
a selection icon such as a + sign. This indicates the node has children. Clicking on the
plus sign is not "selecting" the node but just navigation through the nodes.
Once you click on the name of the directory, you have selected it. The SlideShow will
only change images on node selection, not on tree navigation.

Introduction to the AJAX Slide Show

The AJAX Slide Show control is a member of the AJAX control toolkit found in AJAXControlToolkit.dll.
It displays images from a location found via a web path. The Slide Show control must know where
to find the slide web service. This parameter is stored in the Web.Config in the
SlideShowWebServiceLocation key and is a web path and file name.
One of the parameters for the control is the location of the slide web service that
the slide show uses. This is stored in the Web.Config file in the
SlideShowDefaultLocation. Another parameter is the first file to load.
This allows the slide show to display an image while the web service is building the array
of slides. This value is stored in the Web.Config in the
SlideShowDefaultLocationFirstPicture key.

If you are using a single directory of images, you can set all the necessary
values for the Slide Show in the control’s parameters. You do not need to add
any script/code. Since this application does change directories, some of the
Slide Show parameters will be set in the code behind file.

Modify Web Page

In the default.aspx, add an AJAX Script Manager:

    <asp:ScriptManager ID="ScriptManager1" runat="server" />

The script manager is provided from the AJAX Extensions library.

Then add a TreeControl from the navigation tab of the toolbox. Change the default control from:

    <asp:TreeView ID="TreeView1" runat="server">


    <asp:TreeView ID="TreeView1" runat="server"


The two most important parameters are the OnSelectedNodeChanged and the PathSeparator.
The OnSelectedNodeChanged will call the slide service for a new array of slides to display.
The PathSeparator has already been discussed.

Add an Image control which is where the Slide Show will display the images:

    <asp:Image ID="imgPhotos" runat="server" Height="300" Style="width:auto; border:solid 1px #000000;" />

Add the SlideShow Extender (control) from the AJAX control toolkit. Change the default control from:

    <cc1:SlideShowExtender ID="SlideShowExtender1" runat="server">


    <cc1:SlideShowExtender ID="SlideShowExtender1" runat="server"



The TargetControlId is where the slide show images will appear.
You will also need buttons for Prev, Stop, and Next functionality as well as the Title and Description
of the images. In this application, the title is used as the title of the file but the description is
used to display the path of the file for debugging purposes. The LabelClickthroughURL is used to be
able to test TreeView control navigation from a querystring. An example of this is to send a link to
a non-root node via email.

Add the following label controls below the Slide Show:

    <center><asp:Label ID="lblTitle" runat=server></asp:Label></center><br />
    <asp:Label ID="LabelTreeSelectedNode" runat=server></asp:Label><br />

    <asp:Label ID="LabelClickthroughURL" runat=server></asp:Label><br />
    <asp:Label ID="lblDescription" runat=server></asp:Label><br />
    <asp:Button ID="btnPrev" Text="Prev" runat="server" />

    <asp:Button ID="btnPlay" Text="Play" runat="server" />
    <asp:Button ID="btnNext" Text="Next" runat="server" />



The main work of the code behind file is to fill the TreeView control, find the correct node, and handle selection
of the node.

Add the following library to the default.aspx to handle file and directory management:

    using System.IO;

The Page_Load function and the TreeView1_OnSelectedNodeChanged
function are the two main functions in the default.aspx.cs. The rest of the functions will be lightly
discussed here but are supplied in full in this article’s download.

The Page_Load function is below:

    protected void Page_Load(object sender, EventArgs e)


        // SET first image
        imgPhotos.ImageUrl = _slideShowDefaultLocation + _slideShowDefaultLocationFirstPicture;
        imgPhotos.AlternateText = _slideShowDefaultLocation + _slideShowDefaultLocationFirstPicture;

        // set web service path
        SlideShowExtender1.SlideShowServicePath = _slideShowWebServiceLocation;
        SlideShowExtender1.ContextKey = _slideShowDefaultLocation;

        // don't add copy of tree to tree on postback
        if (TreeView1.Nodes.Count == 0)

        // Set From QueryString or ViewState
        if ((!String.IsNullOrEmpty(_currentTreePathQueryStringName)) && ((Request[_currentTreePathQueryStringName] != null) || (ViewState[_currentTreePathQueryStringName] != null)))

        // else assume first time to page
            // first time to page
            if (!String.IsNullOrEmpty(_slideShowDefaultLocation))

        // set labels so that selected info is visible on page
        //LabelTreeSelectedNode.Text = "<b>SlideShowExtender1.ContextKey:</b>" + SlideShowExtender1.ContextKey;
        if (String.IsNullOrEmpty(LabelClickthroughURL.Text))
            LabelClickthroughURL.Text = "<a href='mailto:?subject=Picture SlideShow from the Berrys&Body=" + HttpContext.Current.Request.Url + "?" + _currentTreePathQueryStringName + "=" + Server.UrlEncode(_slideShowDefaultLocation) + "'>Send link to this page by email</a><br>";


The first two lines get directories and image information from the Web.Config, then verify their existence.
The next two lines get the first image for the Slide Show. This is the image that is displayed while the
Slide Show service is called and processed. It could be anything from a "please wait…" image
to no image at all. The next line tells the Slide Show where to find the service it is to use to get the list
of slides. The next couple of lines populate the TreeView control as long was the TreeView control isn’t already
populated. This is important for postback. The next section of lines determines which node in the TreeView control
should be set as selected (and therefore highlighted in red) based on ViewState or QueryString. This is useful
when you want to send the URL to someone and you want the TreeView to load from an interior node when they
click on the link. The last line displays the current context key into a Label on the page for debugging purposes.

The TreeView1_OnSelectedNodeChanged function is below:

    protected void TreeView1_OnSelectedNodeChanged(object sender, EventArgs e)

        // DFB: Get Location of Node Selected used by TreeView to find a node
        _currentTreePath = TreeView1.SelectedNode.ValuePath;
        //lblDescription.Text = "<b>Selected ValuePath :</b>" + _currentTreePath ;

        // DFB: Get Location of web Directory
        SlideShowExtender1.ContextKey = TreeView1.SelectedNode.Value;
        //LabelTreeSelectedNode.Text = "<b>SlideShowExtender1.ContextKey:</b> " + SlideShowExtender1.ContextKey +

        // "<br><b>Server.MapPath(ContextKey)</b>:" + Server.MapPath(SlideShowExtender1.ContextKey);

        // DFB: If Path is not empty, add it to state so we have it on postback
        if (!String.IsNullOrEmpty(_currentTreePath))
            ViewState.Add(_currentTreePath, _currentTreePath);

            LabelClickthroughURL.Text = "<a href='mailto:?subject=Picture SlideShow from the Berrys&Body=" + HttpContext.Current.Request.Url + "?" + _currentTreePathQueryStringName + "=" + Server.UrlEncode(_currentTreePath) + "'>Send link to this page by email</a><br>";


This function is called when the name of a directory is clicked on, not when the expand/contract sign
to the left of the name of the directory is clicked on. This selection of the directory name indicates
that all valid images (as defined in Web.config) should be found (via the web service) and loaded into
the Slide Show control or the "No Image Found" image should be loaded.

The first two lines of the function grab the ValuePath and place it in a label on the page. The next
couple of lines get the Value of the directory. This value is the new contextKey for the Slide Service
and is placed in a label on the page. The next section of text adds the selected ValuePath to the
ViewState and uses it to build a link that you could send someone to get back to this current node’s
display in the Slide Show.

Once you have the default.aspx and default.aspx.cs written, make sure you have a working
web service and valid values in the Web.Config.


Build your Slide service first and make sure it returns valid information. The function signature
is exact, don’t change the characters or case. Next build the default.aspx and the code behind
page by adding a TreeView for navigation and the AJAX Slide Show for viewing.

Author Biography

Dina Fleet Berry is a .NET programmer and technical writer. She contributes to the Project
31A programming blog found at

More by Author

Must Read
